Type 314 - ArcOflex coupling

Characteristics and features

  • backlash and torsionally stiff free metal disc coupling
  • 400 - 23000 Nm
  • special solutions on request
  • wear-free and maintenance-free
  • high misalignment values
  • high strength and bending elasticy stainless steel disc pack
  • recommended temperature range: -35 °C to 150 °C use outside of this spectrum on request
  • single and double joint designs
  • spacer also possible in use case-related lengths

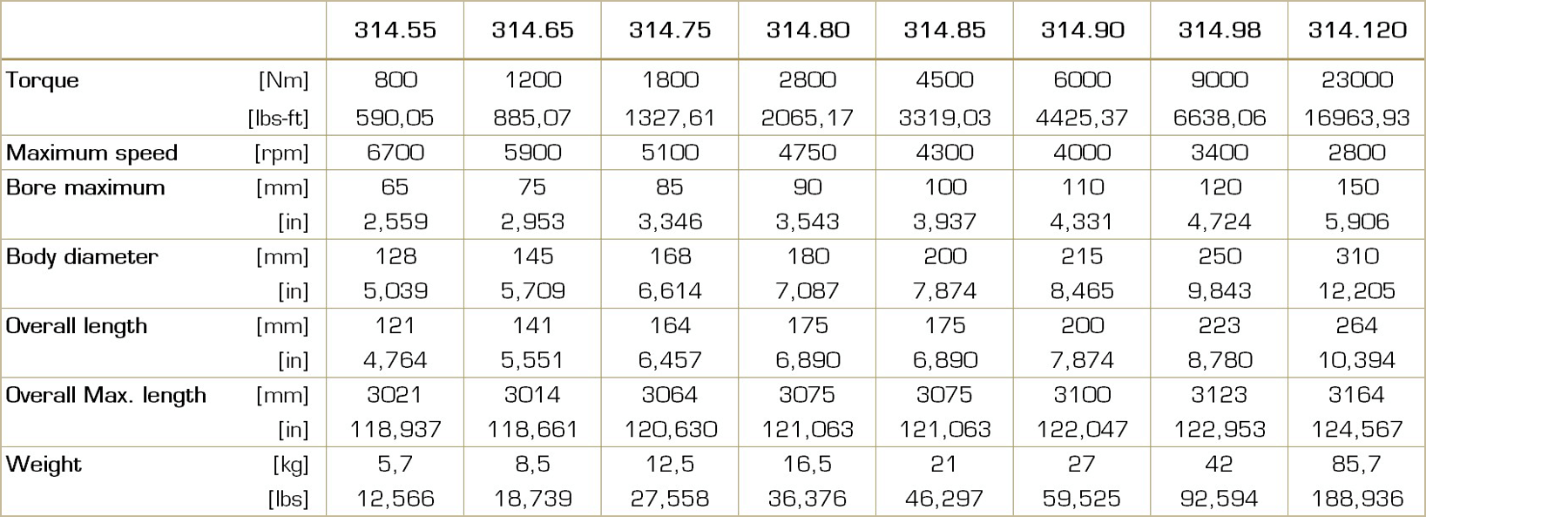

  • Table with technical data for the torsionally flexible coupling type 314, including torque ranges, sizes, and other performance parameters.

Datasheet, operating and assembly instructions
